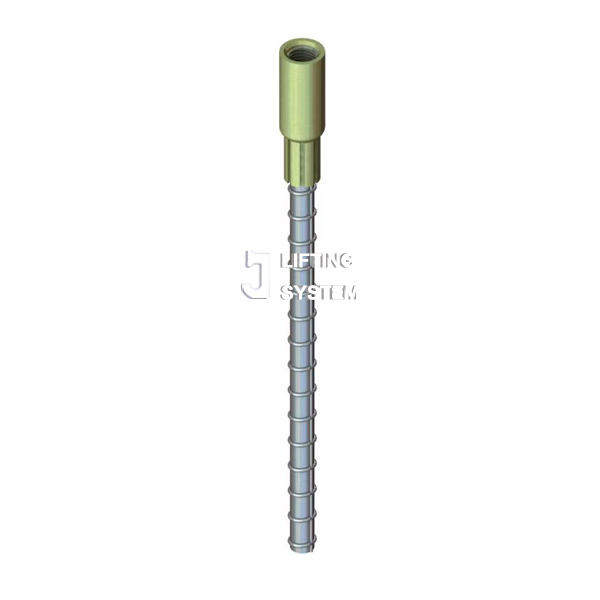

Straight Rebar Anchor Socket

Straight Rebar Anchor Socket/Straight tailed lifting sockets are manufactured from high grade precision steel in a zinc plated finish or stainless steel, and come standard with a (Rd) round thread. Loads are dispersed evenly over the length of the straight tail, which is designed for lifting very thin precast concrete panels, such as thin walls, flat panels etc., even precast masonry wall components can be transported with this bar Anchor.

Send Inquiry

Product Description

Straight Rebar Anchor Socket/Straight tailed lifting sockets are manufactured from high grade precision steel in a zinc plated finish or stainless steel, and come standard with a (Rd) round thread. Loads are dispersed evenly over the length of the straight tail, which is designed for lifting very thin precast concrete panels, such as thin walls, flat panels etc., even precast masonry wall components can be transported with this bar Anchor.

Size

S.W.L

Code

Dimensions  (mm)

KGS

L

D

d

e

Rd12

500

LSS03-12200

200

16

8

22

Rd16

1200

LSS03-16270

270

21

12

27

Rd20

2000

LSS03-20350

350

27

14

35

Rd24

2500

LSS03-24400

400

31

16

43

Rd30

4000

LSS03-30500

500

40

20

56

Rd36

6300

LSS03-36650

650

48

25

69

Rd42

8000

LSS03-42850

850

54

28

80


20 years of expertise producing threaded lifting systems for precast concrete, spanning from M thread to RD thread, with a variety of anchors, accessories (caps, plugs), lifting loops, swivel eyes, and other components. Everything is made in-house.


How it is used?



We work with you throughout the entire process, from initial design and planning to fabrication and installation. We understand that every project is unique, and we are dedicated to providing our clients with the personalized attention and support they need to ensure it is completed successfully. Contact us for details!

Product display:



What’s your project?



After 20 years of just focusing in this industry, we have developed quite a full range of products for precast factories and their steel workshops, from all the 9 major types of precast lifting anchors and connection anchors, concrete reinforcement.
