Solid Bar Lifting Socket
Chontan Solid bar lifting socket supplied by China is capable of lifting and fixing concrete units. Additional reinforcement is necessary, whether utilized for lifting or fastening. These sockets are utilized in demanding applications and can be ordered in stainless steel.
Send Inquiry
Product Description
Solid bar lifting socket is capable of lifting and fixing concrete units. Additional reinforcement is necessary, whether utilized for lifting or fastening. These sockets are utilized in demanding applications and can be ordered in stainless steel.

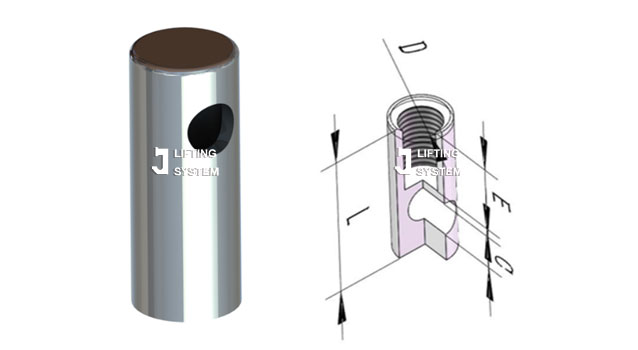

Chontan Solid Bar Lifting Socket is same function as the lifting socket, but just made from Solid bar. Different length and stronger safety factor than the normal type.
|
Size |
S.W.L |
Code |
Dimensions （mm） |
|||
|
KGS |
L |
e |
D |
C |
||
|
Rd12 |
500 |
LS02-12050 |
50 |
18 |
17 |
9.5 |
|
Rd14 |
800 |
LS02-14054 |
54 |
21 |
19 |
11.5 |
|
Rd16 |
1200 |
LS02-16061 |
61 |
24 |
23 |
14.0 |
|
Rd18 |
1600 |
LS02-18070 |
70 |
27 |
24 |
14.5 |
|
Rd20 |
2000 |
LS02-20073 |
73 |
30 |
28 |
16.5 |
|
Rd24 |
2500 |
LS02-24086 |
86 |
36 |
32 |
19.0 |
|
Rd30 |
4000 |
LS02-30107 |
107 |
45 |
39 |
22.0 |
|
Rd36 |
6300 |
LS02-36138 |
138 |
54 |
48 |
29.0 |
* Stainless Steel can be done by order.
* Different Length and Metric Thread are available by order.
* Safety Factor is 3:1
