Heavy Duty Fixing Insert With Cross Pin

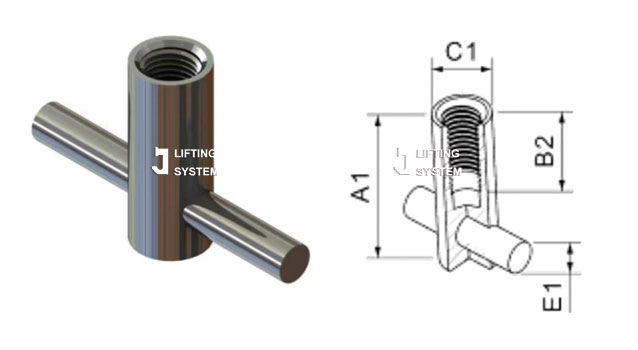

Chontan cross pin from China is utilized to transfer the load into the concrete, much as the lifting socket, therefore further reinforcing is typically not required. The heavy duty fixing insert with cross pin can be used to lift and fix concrete structures.
Send Inquiry
Product Description
◎ Designed for high tensile and shear loads.
◎ Widely used in the application of precasting concrete construction.
◎ Material is high strength solid bar, with cross pin.
◎ Stainless Steel can be done by order.
◎ Different Length and Metric Thread are available by order.
Heavy Duty Fixing Insert With Cross Pin Specification
|
Size |
S.W.L |
Code |
Dimensions (mm) |
|||
|
KGS |
A1 |
B2 |
C1 |
E1 |
||
|
M8 |
350 |
LS03-08040 |
40 |
12 |
14 |
6 |
|
M10 |
600 |
LS03-10060 |
60 |
35 |
16 |
6 |
|
M12 |
900 |
LS03-12050 |
50 |
20 |
20 |
10 |
|
LS03-12075 |
75 |
40 |
20 |
10 |
||
|
M16 |
1700 |
LS03-16075 |
75 |
40 |
22 |
10 |
|
LS03-16100 |
100 |
40 |
22 |
10 |
||
|
M20 |
2300 |
LS03-20075 |
75 |
35 |
25 |
12 |
|
M24 |
3000 |
LS03-24100 |
100 |
55 |
35 |
16 |
|
M30 |
6000 |
LS03-30125 |
125 |
60 |
50 |
25 |
* Safety factor 3:1
