Lifting Socket
Chontan Lifting sockets from China are commonly utilized in precast concrete construction applications such as lifting beams, wall and floor slabs, and so on. To transfer the load into the concrete, a reinforcement bar must be put through the cross hole.
Send Inquiry
Product Description
Lifting sockets are commonly utilized in precast concrete construction applications such as lifting beams, wall and floor slabs, and so on. To transfer the load into the concrete, a reinforcement bar must be put through the cross hole.
Chontan Lifting Socket can be used widely in application of precast concrete construction, such as beams and girders, wall and floor slabs, flower tubes, parapets, etc. A reinforcement tail must be fitted to transfer the load into the concrete.
|
Size |
S.W.L |
Code |

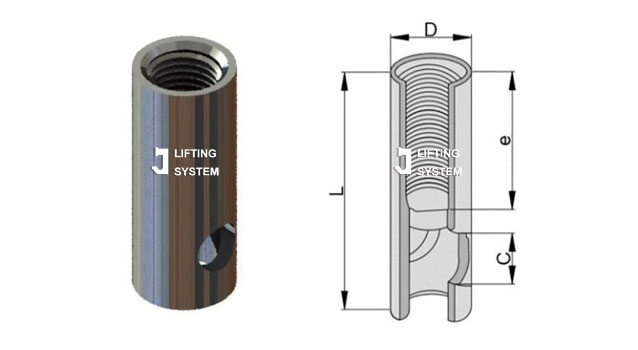

Dimensions（mm） |
|||
|
KGS |
L |
e (min.) |
D |
C |
||
|
Rd12 |
500 |
LS01-12040 |
40 |
18 |
16 |
8.0 |
|
Rd14 |
800 |
LS01-14047 |
47 |
21 |
18 |
10.5 |
|
Rd16 |
1200 |
LS01-16054 |
54 |
24 |
21 |
13.0 |
|
Rd18 |
1600 |
LS01-18065 |
65 |
27 |
24 |
13.0 |
|
Rd20 |
2000 |
LS01-20069 |
69 |
30 |
27 |
15.5 |
|
Rd24 |
2500 |
LS01-24078 |
78 |
36 |
31 |
18.0 |
|
Rd30 |
4000 |
LS01-30103 |
103 |
45 |
40 |
21 |
|
Rd36 |
6300 |
LS01-36125 |
125 |
54 |
48 |
26.5 |
|
Rd42 |
8000 |
LS01-42145 |
145 |
63 |
54 |
32.0 |
|
Rd52 |
12500 |
LS01-52195 |
195 |
78 |
68 |
40.0 |
* Stainless Steel can be done by order.
* Different Length and Metric Thread are available by order.
* Safety Factor is 3:1.
