Lifting Insert

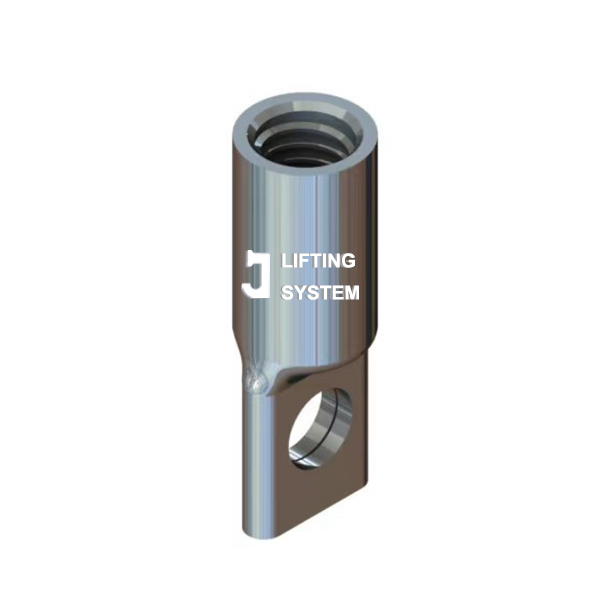

Lifting Insert is a M threaded insert used for lifting. It can be used to move beams, panels, and slabs, among other things. To transfer the load into the concrete, a rebar must be passed through the cross hole.
Send Inquiry
Product Description
Lifting Insert is a M threaded insert used for lifting. It can be used to move beams, panels, and slabs, among other things. To transfer the load into the concrete, a rebar must be passed through the cross hole.
|
Size |
S.W.L |
Code |
Dimensions （mm） |
||
|
KGS |
L |
D |
|
||
|
M10 |
350 |
LF201-10050 |
50 |
14 |
18 |
|
M12 |
500 |
LF201-12060 |
60 |
16 |
20 |
|
M16 |
1200 |
LF201-16080 |
80 |
21 |
24 |
|
M20 |
2000 |
LF201-20100 |
100 |
27 |
30 |
|
M24 |
2500 |
LF201-24110 |
110 |
31 |
30 |
|
M30 |
4000 |
LF201-30135 |
135 |
40 |
35 |
Safety factor 3:1
Lifting insert with nail plate
|
Size |
S.W.L |
Code |
Dimensions （mm） |
||
|
KGS |
L |
D |
e |
||
|
M10 |
350 |
LS203-10050 |
50 |
14 |
18 |
|
M12 |
500 |
LS203-12060 |
60 |
16 |
20 |
|
M16 |
1200 |
LS203-16080 |
80 |
21 |
24 |
|
M20 |
2000 |
LS203-20100 |
100 |
27 |
30 |
|
M24 |
2500 |
LS203-24110 |
110 |
31 |
30 |
|
M30 |
4000 |
LS203-30135 |
135 |
40 |
35 |
