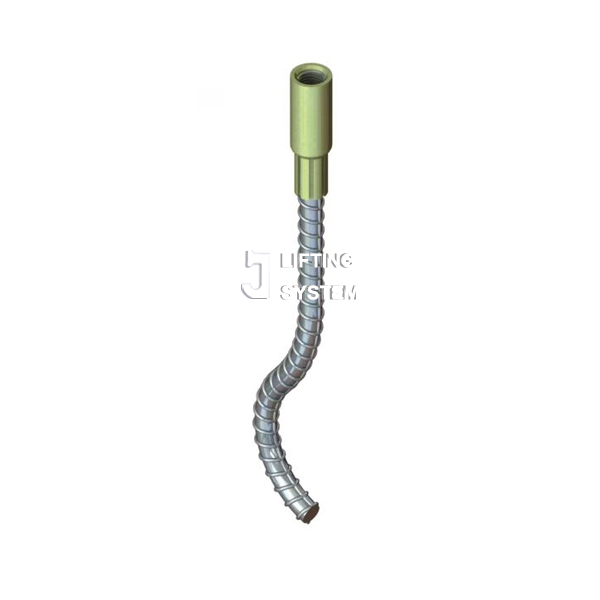

Wavy Tail Anchor Long Type
Wavy Tail Anchor Long Type:Thespecialwave shape provides a gentle load application, especially for thin wall parts with a low level of reinforcing. This enables the manufacture of thin precast concrete pieces that need minimal reinforcing.A stainless steel socket is available in addition to the regular version with a galvanized socket for greater corrosion protection.
Send Inquiry
Product Description
Wavy Tail Anchor Long Type
Thespecialwave shape provides a gentle load application, especially for thin wall parts with a low level of reinforcing. This enables the manufacture of thin precast concrete pieces that need minimal reinforcing.A stainless steel socket is available in addition to the regular version with a galvanized socket for greater corrosion protection.
|
Size |
S.W.L |
Code |
Dimensions （mm） |
|||
|
KGS |
L |
D |
d |
e |
||
|
Rd12 |
500 |
LWL02-12137 |
137 |
16 |
8 |
22 |
|
Rd16 |
1200 |
LWL02-16216 |
216 |
21 |
12 |
27 |
|
Rd20 |
2000 |
LWL02-20257 |
257 |
27 |
14 |
35 |
|
Rd24 |
2500 |
LWL02-24350 |
350 |
31 |
16 |
43 |
|
Rd30 |
4000 |
LWL02-30450 |
450 |
40 |
20 |
56 |
|
Rd36 |
6300 |
LWL02-36570 |
570 |
48 |
25 |
69 |
|
Rd42 |
8000 |
LWL02-42620 |
620 |
54 |
28 |
80 |
|
Rd52 |
12500 |
LWL02-52880 |
880 |
68 |
32 |
95 |
