Spherical-Head Tilt-Up Anchor

The Chontan Spherical-Head Tilt-Up Anchor from the Chinese manufacturer also named as Pitching Anchor. It's used for erection and transport of thin precast concrete elements, such as walls/beams. This anchor should be cast in the concrete by a special recess former but using the same lifting clutch as lifting anchor.

Send Inquiry

Product Description

The Spherical-Head Tilt-Up Anchors are used to tilt and lift thin concrete wall or beam elements. They are especially suitable if a tilt-up table is not used for production. The universal head lifting link can be used for this anchor head as the head design is identical to the spherical head anchor.

Tilt anchor particularly designed to convert precast concrete architectural pieces from a horizontal to a vertical plane.  By ensuring there is no contact between the ring clutch and the concrete surface, the innovative head design completely eliminates the possibility of aesthetic harm to the concrete finish. Used in sandwich panel production.

SPECIFICATIONS

Rated Load

Code

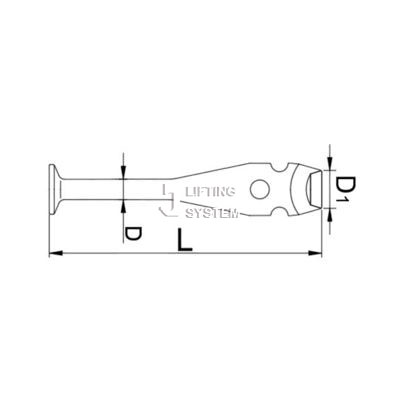

Sizes (mm)

Tons

L

D1

D

2.5

L05-025

240

26

14

5.0

L05-050

240

36

20



* Safety Factor is 3:1.
* Stainless Steel 304 (A2)/316(A4) are available according to the request.
* Surface Black /Zinc Plate (Z.P) / Hot Dipping Galvanizing (H.D.G) are available.


How we produce?

We have 20 years of experience making lifting systems for precast concrete. Unlike other manufacturers, we invented our first semi-automatic forging process that produces these anchors faster and more efficiently. Everything is made in-house.
