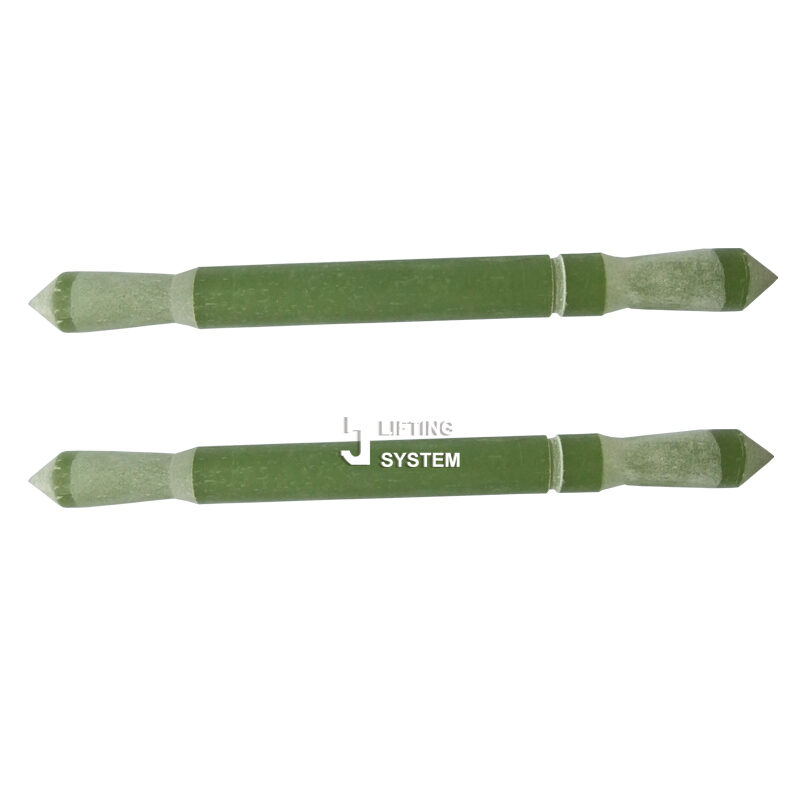

Spcpl Sandwich Wall Fiberglass Connect Pin
Spcpl Sandwich Wall Fiberglass Connect Pin is used in precast concrete sandwich panel system, which maximises thermal efficiency by insulation with high thermal mass properties of concrete. SWFCP locks the insulation layer between the internal structural concrete layer and the external concrete layer wythe. They are made from pultruded epoxy back-boned resin for maximised corrosion resistance and inter laminar shear strength.
Send Inquiry
Product Description
Spcpl Sandwich Wall Fiberglass Connect Pin
SWFCP is used in precast concrete sandwich panel system, which maximises thermal efficiency by insulation with high thermal mass properties of concrete. SWFCP locks the insulation layer between the internal structural concrete layer and the external concrete layer wythe. They are made from pultruded epoxy back-boned resin for maximised corrosion resistance and inter laminar shear strength.
|
Item |
Type |
Insulation ThicknessT (mm) |
Code |
Size (L x T mm) |
|
GFRP Sandwich Panel Connect Pin |
Thickness of Outside Wall is less than 60mm （10mm） |
15 |
SPCPL-95-15 |
95x15 |
|
20 |
SPCPL-100-20 |
100x20 |
||
|
30 |
SPCPL-110-30 |
110x30 |
||
|
40 |
SPCPL-120-40 |
120x40 |
||
|
50 |
SPCPL-130-50 |
130x50 |
||
|
60 |
SPCPL-140-60 |
140x60 |
||
|
70 |
SPCPL-150-70 |
150x70 |
||
|
80 |
SPCPL-160-80 |
160x80 |
||
|
90 |
SPCPL-170-90 |
170x90 |
||
|
100 |
SPCPL-180-100 |
180x100 |
||
|
Thickness of Outside Wall is bigger than 60mm （12mm） |
15 |
SPCPH-115-15 |
115x15 |
|
|
20 |
SPCPH-120-20 |
120x20 |
||
|
30 |
SPCPH-130-30 |
130x30 |
||
|
40 |
SPCPH-140-40 |
140x40 |
||
|
50 |
SPCPH-150-50 |
150x50 |
||
|
60 |
SPCPH-160-60 |
160x60 |
||
|
70 |
SPCPH-170-70 |
170x70 |
||
|
80 |
SPCPH-180-80 |
180x80 |
||
|
90 |
SPCPH-190-90 |
190x90 |
||
|
100 |
SPCPH-200-100 |
200x100 |
