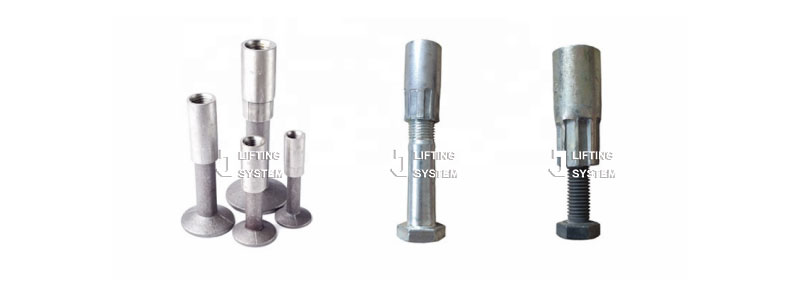

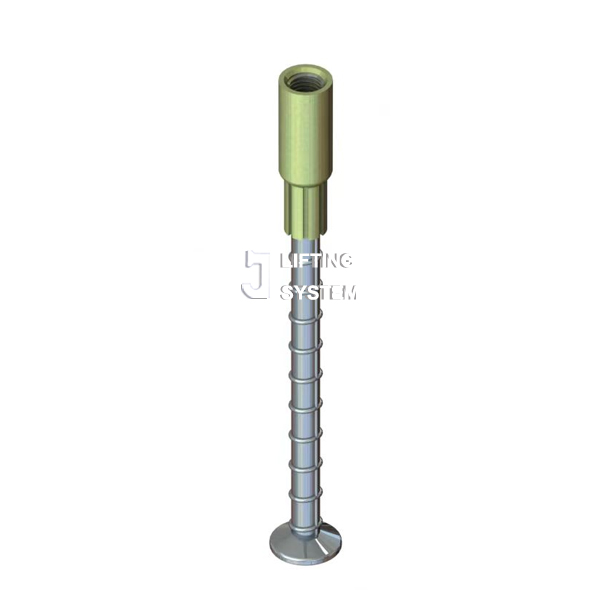

Rebar Foot Anchor Socket Combi Anchor
The Rebar Foot Anchor Socket Combi Anchor is used totransport various-sized precast concrete pieces. The combi-anchor is ideal for transporting elements with modest dimensions, such as thin facing panels (structural layer of sandwich panels), beams, or columns.
Send Inquiry
Product Description
The Rebar Foot Anchor Socket Combi Anchor is used totransport various-sized precast concrete pieces. The combi-anchor is ideal for transporting elements with modest dimensions, such as thin facing panels (structural layer of sandwich panels), beams, or columns.
|
Size |
S.W.L |
Code |
Dimensions （mm） |
|||
|
KGS |
L |
D |
d |
e |
||
|
Rd12 |
500 |
LSR04-12100 |
100 |
16 |
8 |
22 |
|
Rd16 |
1200 |
LSR04-16150 |
150 |
21 |
12 |
27 |
|
Rd20 |
2000 |
LSR04-20235 |
235 |
27 |
14 |
35 |
|
Rd24 |
2500 |
LSR04-24260 |
260 |
31 |
16 |
43 |
|
Rd30 |
4000 |
LSR04-30390 |
390 |
40 |
20 |
56 |
|
Rd36 |
6300 |
LSR04-36440 |
440 |
48 |
25 |
69 |
|
Rd42 |
8000 |
LSR04-42540 |
540 |
54 |
28 |
80 |
Safety factor 3:1
