Plate Anchor
The Chontan plate anchor made in China is recommended for all large thin reinforced slabs, which are to be lifted at right angles, and where the standard lifting anchors will not fit in the slab. They are also used for demolding panels. The anchor can also be used in elements when the standard short spherical head anchor does not provide sufficient anchorage.
Send Inquiry
Product Description
Plate pin anchors are utilized in precast units that are shallow. The additional reinforcement is built on the plate, transfers load into the surrounding concrete using four additional reinforcement bars that are arranged in pairs over the integral plate. These anchors are made of forged mild steel that is circular.

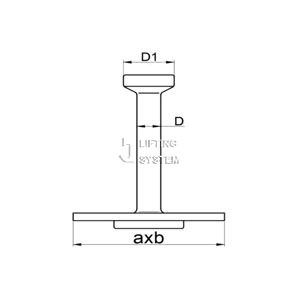

Plate Anchor SPECIFICATIONS
|
Rated Load |
Code |
Size （mm） |
Popular Length (L) |
Axb |
ds |
Ls |
|||
|
Tons |
D |
D1 |
mm |
mm |
|||||
|
2.5 |
L07-025 |
14 |
26 |
55 |
120 |
|
70x70 |
10 |
300 |
|
5.0 |
L07-050 |
20 |
36 |
55 |
65 |
110 |
90*90 |
12 |
450 |
|
10.0 |
L07-100 |
28 |
46 |
115 |
|
|
90*90 |
16 |
600 |
* Other different Length are available according to the order.
* Safety Factor is 3:1.
* Surface Black /Zinc Plate (Z.P) / Hot Dipping Galvanizing (H.D.G) are available.
