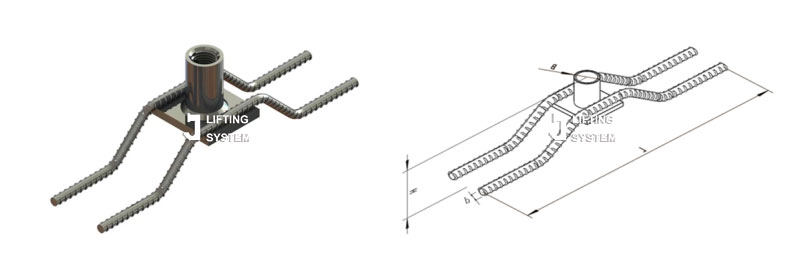

Chontan Flat Lifting Socket With Rebar Slab Anchor from China have a low profile and are thus appropriate for the face of thin panels or the top of slabs. Because the socket and cap are thoroughly welded, the socket is effectively sealed. Flat lifting sockets are available in both mild steel and stainless steel.
Flat Lifting Socket With Rebar Slab Anchor have a low profile and are thus appropriate for the face of thin panels or the top of slabs. Because the socket and cap are thoroughly welded, the socket is effectively sealed. Flat lifting sockets are available in both mild steel and stainless steel. When supplied in stainless steel, the capped end helpsprevent water entry and corrosion.

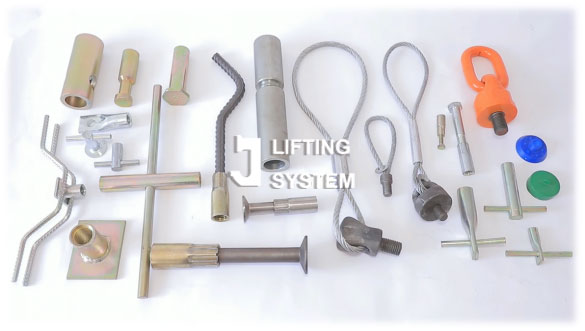

Precast units can be lifted efficiently and affordably with the precast threaded socket lifting system. The precast threaded socket lifting system, which has a large selection of sockets, is appropriate for lifting a variety of precast goods, from walls to drainage systems. Flat lifting sockets are available in both mild steel and stainless steel. When supplied in stainless steel, the capped end helps prevent water entry and corrosion.
Size |
S.W.L |
Code |
Dimensions (mm) |
|||
KGS |
L |
H |
B |
d |
||
M12 |
500 |
LS05-12200 |
200 |
55 |
16 |
6 |
M16 |
1200 |
LS05-16300 |
300 |
75 |
21.5 |
8 |
* Size from M/Rd12 to M/Rd52 are available.
* Safety factor 3:1
