Drop Forged Erection Anchor with Shear Plate
Chontan Drop Forged Erection Anchor with Shear Plate supplies by China is specifically developed to provide better lifting capacities for edge lifts from horizontal to vertical. The anchor head is built with two "ears" on the head that give protection against concrete spalling. During lateral pulls, these protrusions prevent the ring clutch from rotating.
Send Inquiry
Product Description
Drop Forged Erection Anchor with Shear Plate is specifically developed to provide better lifting capacities for edge lifts from horizontal to vertical.The anchor head is built with two "ears" on the head that give protection against concrete spalling. During lateral pulls, these protrusions prevent the ring clutch from rotating. A shear bar is no longer required because of the forged shear plate.
Chontan Forged erection anchor with shear plate eliminate the need for a shear bar.
|
Load Group |
Axial Load |
Code |
Dimensions (mm) |
||
|
Tons |
LBS |
L |
W |
T |
|
|
2.5 |
6000 |
R13SP-2.5 |
8 |
2 |
3/8 |
|
5 |
12000 |
R13SP-5.0 |
10-3/8 |
2-1/2 |
5/8 |
|
10 |
20000 |
R13SP-10.0 |
12-3/4 |
3-3/4 |
3/4 |
* Safety Factor is 4:1.
* Surface Black(B) /Zinc Plate (Z.P) / Hot Dipping Galvanizing (H.D.G) are available.

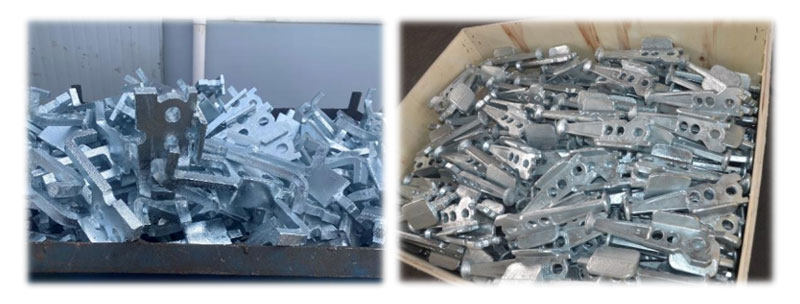

Product Display:
