Double Head Lifting Anchor
The Chontan Double head lifting anchor from the Chinese manufacturer, for use with automated pipe manufacture. Due to the configuration of the double headed anchor's head and collar, it can be installed and maintained in the former.
Send Inquiry
Product Description
The Chontan Double head lifting anchor can be used in situations where the recess former stays fixed to the formwork. This can be in face-up production of slabs, overhead production of utility pipes and installation in stair elements. Use a lubricant with the anchor to push into the Double Head Rubber Recess Former.
SPECIFICATIONS
|
Rated Load |
Code |

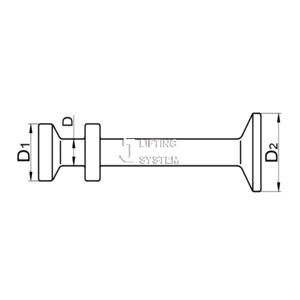

Sizes （mm） |
Popular Length |
|||||||
|
Tons |
D |
D1 |
D2 |
mm |
||||||
|
1.3 |
L03-013 |
10 |
19 |
25 |
50 |
55 |
65 |
85 |
100 |
120 |
|
2.5 |
L03-025 |
14 |
26 |
35 |
65 |
85 |
110 |
120 |
140 |
170 |
|
5.0 |
L03-050 |
20 |
36 |
50 |
95 |
120 |
140 |
170 |
180 |
210 |
* Other different Length are available according to the order.
* Safety Factor is 3:1.
* Stainless Steel 304 (A2)/316(A4) are available according to the request.
* Replace with B = Black / H.D.G = HDG / Z = Zinc Plated.
