Crown Foot Anchor
Chontan Crown Foot Anchor is used to lift large-surface, flat, reinforced precast elements, floor slabs and similar. Precondition is that the slab is verified for load case “lifting” and the necessary bending reinforcement for the anchors is installed.
Send Inquiry
Product Description
Perfect for lifting thin concrete panels, and in most circumstances, no further strengthening is required.

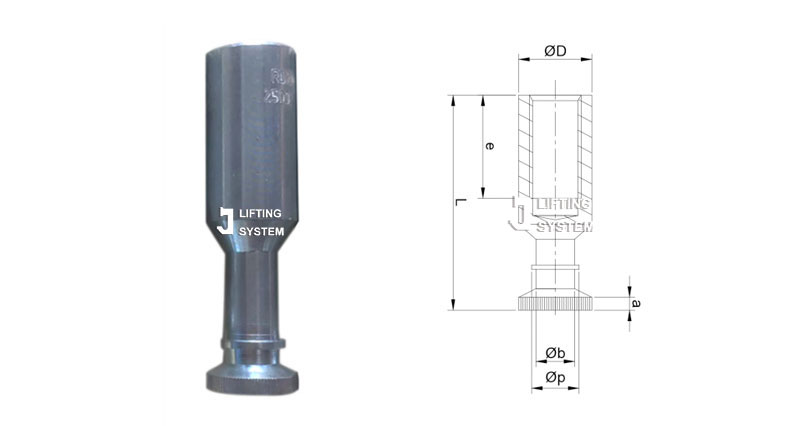

Crown Foot Anchor Specification
|
Size |
S.W.L |
Code |
Dimensions (mm) |
|||||
|
KGS |
L |
D |
e |
a |
b |
p |
||
|
Rd12 |
500 |
LS06-12060 |
60 |
17 |
24 |
3 |
9 |
11 |
|
Rd14 |
800 |
LS06-14070 |
70 |
19 |
28 |
4 |
11 |
13 |
|
Rd16 |
1200 |
LS06-16080 |
80 |
21 |
32 |
4 |
12.5 |
15.5 |
|
Rd18 |
1600 |
LS06-18090 |
90 |
24 |
36 |
5 |
14.5 |
17.5 |
|
Rd20 |
2000 |
LS06-20100 |
100 |
27 |
40 |
5.5 |
16 |
19 |
|
Rd24 |
2500 |
LS06-24115 |
115 |
31 |
48 |
5.5 |
18.5 |
22.5 |
|
Rd30 |
4000 |
LS06-30150 |
150 |
39 |
60 |
6 |
23 |
27 |
* Different Length and Metric Thread are available by order.
* Safety Factor is 3:1
20 years of expertise producing threaded lifting systems for precast concrete, spanning from M thread to RD thread, with a variety of anchors, accessories (caps, plugs), lifting loops, swivel eyes, and other components. Everything is made in-house.
How it is used?
We work with you throughout the entire process, from initial design and planning to fabrication and installation. We understand that every project is unique, and we are dedicated to providing our clients with the personalized attention and support they need to ensure it is completed successfully. Contact us for details!
Product display:
What’s your project?
After 20 years of just focusing in this industry, we have developed quite a full range of products for precast factories and their steel workshops, from all the 9 major types of precast lifting anchors and connection anchors, concrete reinforcement.
+ What types of products do we manufacture?
We do produce the complete range of all types of
Precast lifting anchors,
-- Lifting anchors, lifting eye anchors, off-set lifting anchors, lifting clutches, recess former;
-- Two-hole anchors, erection anchors, spread anchors, sandwich panel anchors, ring clutches, etc;
Threaded lifting sockets,
-- Lifting socket, wavy tail anchor, straight tail anchor, crown foot anchor, flat plate socket, bolt anchor socket, lifting loop, swivel lifting eye, etc.
Connecting systems
