Crown Foot Anchor Socket
Chontan Crown Foot Anchor Sockets from China are suitable for lifting the light weight flat units. The advantage is that in most cases no additional reinforcement is needed as the load is transferred through the foot into the concrete.
Send Inquiry
Product Description

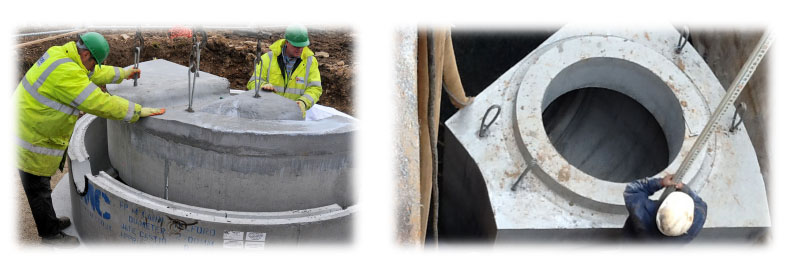

Ideal for lifting thin concrete panels without the need for extra reinforcement in most circumstances. Available in standard zinc plated and stainless steel upon request.
Ideal for lifting thin concrete panels without the need for extra reinforcement in most circumstances. Available in standard zinc plated and stainless steel upon request.
|
Size |
S.W. L |
Code |

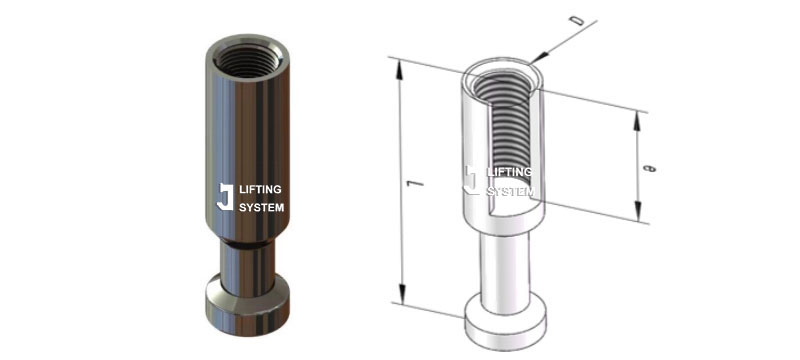

Dimensions(mm) |
|
|
KGS |
L |
D |
||
|
Rd12 |
500 |
LS07-12060 |
60 |
17 |
|
Rd16 |
1200 |
LS07-16080 |
80 |
21 |
|
Rd20 |
2000 |
LS07-20100 |
100 |
27 |
|
Rd24 |
2500 |
LS07-24115 |
115 |
31 |
|
Rd30 |
4000 |
LS07-30150 |
150 |
39 |
* Safety Factor is 3:1
